Tactile Membrane Switch Design Considerations for Long-Term Reliability

Long-term reliability is the real benchmark for any membrane switch used in industrial control, medical devices, transportation equipment, or outdoor electronics. A user can forgive a plain interface; they rarely forgive a key that stops responding, feels inconsistent, or begins to fail intermittently after months of use. That’s why designing a tactile membrane switch is not only about “making it click”—it’s about building a stable stack-up that protects tactile response, electrical continuity, and environmental resistance for years.

This guide explains the most important tactile membrane switch design considerations for long-term reliability—from stack-up choices and dome selection to circuit routing, sealing, integration, and validation testing. Use it as a practical roadmap when specifying your next membrane switch.

Start With Reliability Targets, Not Just a “Nice Feel”

Reliability begins with a clear definition of success. Before selecting materials or drawing a circuit, document your target conditions and failure tolerance. A reliable membrane switch specification typically includes:

• Expected lifecycle: estimated actuations per key (presses/day × years) and peak-use events.

• Operating environment: temperature range, humidity/condensation exposure, UV, dust, splash, chemical cleaning, or oils.

• User interaction: bare hands vs gloves, wet operation, “eyes-free” confirmation needs, allowable actuation force.

• Installation constraints: enclosure stiffness/flatness, mounting surface preparation, cable routing, connector type.

• Compliance requirements: ingress protection (IP), sterilization/cleaning protocols, or industry safety norms.

These inputs determine whether you need stronger sealing, more robust adhesives, a different circuit substrate, or a particular dome technology. Without them, even a well-built tactile membrane switch can be under-designed for the field.

Understand the Membrane Switch Stack-Up and How It Fails Over Time

A membrane switch is a layered system. Reliability is rarely about one part; it’s about how layers behave together under repeated press cycles and environmental stress. A common stack-up includes:

• Graphic overlay (user-facing film with legends/graphics)

• Overlay adhesive (bonds overlay to spacer/circuit)

• Spacer layer (defines travel, prevents accidental contact)

• Circuit layer (printed PET circuit, flexible circuit, or hybrid)

• Rear adhesive (bonds assembly to enclosure)

• Tail/connector (ZIF tail, header, or custom termination)

Over time, reliability failures often cluster into a few categories:

• Tactile degradation: dome fatigue, loss of snap, inconsistent force curve, misalignment.

• Electrical intermittency: cracked traces near high-stress regions, connector issues, contamination.

• Bonding/sealing failures: edge lift, delamination, moisture ingress, adhesive softening or chemical attack.

• Overlay wear: legend abrasion, surface haze, loss of contrast, UV yellowing, chemical staining.

Designing a reliable tactile membrane switch means reducing stress concentration, choosing compatible materials, and validating the assembly as a system.

Choose the Right Tactile Technology: Metal Domes vs Polydomes

The tactile “click” is usually created by a snap element that collapses and returns. The two most common approaches are metal domes and formed polymer domes (polydomes). Each can be suitable, but long-term reliability depends on matching the technology to your duty cycle and environment.

Metal Domes for Crisp Feedback and Repeatable Performance

Metal domes are widely used in tactile membrane switch designs because they provide a distinct snap and can perform well in high-use interfaces when properly specified. Key considerations include:

• Dome shape and size: affects actuation force, travel, and snap ratio.

• Actuation force selection: lighter forces can improve usability; heavier forces can reduce accidental presses and may suit gloves.

• Dome retention: use a consistent retention method (e.g., dome retainer layer) to prevent shifting and preserve alignment.

• Contact design: ensure the pad geometry supports reliable closure without excessive wear or bounce.

• Sound expectations: metal domes can introduce audible feedback; confirm it’s acceptable for your application.

A good metal-dome membrane switch is not just “clicky”—it’s consistent from key to key and stable after thousands or millions of presses.

Polydomes When You Need a Softer Feel or Specific Industrial Aesthetics

Polydome-based tactile membrane switch designs can deliver a smoother tactile sensation and a different visual/industrial feel. However, polymer materials may change behavior across temperature ranges and over long durations. If your product lives in fluctuating temperatures or sees heavy daily use, define your tactile tolerance and test for relaxation/creep-related changes in feel.

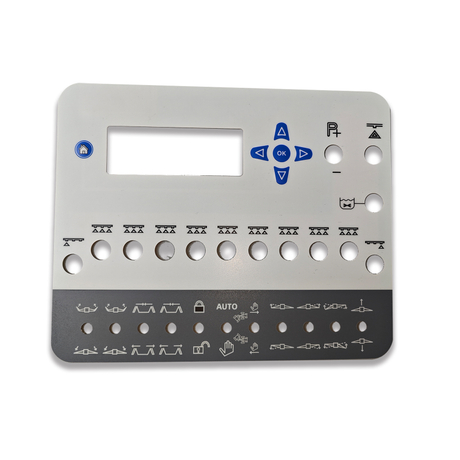

Design the Overlay for Real-World Wear, Not Just Appearance

The overlay is the most visible part of a membrane switch, but it also bears the brunt of abrasion, cleaning, and UV exposure. To keep your interface readable and professional over time, focus on:

• Overlay material selection: choose films that match your environment (abrasion, chemical cleaners, UV).

• Surface finish: matte textures can hide scuffs; glossy finishes can look premium but may show scratches sooner.

• Protective coatings: hardcoats or chemical-resistant coatings can extend life in industrial or medical environments.

• Legend durability: prioritize printing methods and ink systems that resist solvents and repeated contact.

Also consider the ergonomics and accuracy of press targeting. Embossing, rim emboss, or pillow emboss can guide fingers to the right key and reinforce the tactile identity of a tactile membrane switch, but it must be designed with stack-up tolerances in mind to prevent stress or misalignment.

Adhesives and Bonding: The Hidden Reliability Engine

When a membrane switch fails in the field, bonding issues are often involved: edge lift, bubbles, delamination, or moisture pathways. Adhesive selection and bonding design should account for:

• Temperature cycling: adhesives can soften or shrink/expand, stressing the layers.

• Chemical exposure: cleaning solutions, oils, or disinfectants can attack certain adhesive chemistries.

• Surface energy and prep: plastics, powder-coated metals, and textured surfaces may need special preparation.

• Bond line design: avoid sharp transitions and ensure consistent pressure during lamination.

For harsh environments, edge sealing strategy matters as much as adhesive type. If moisture can reach the circuit layer, tactile and electrical performance can degrade—even if the switch initially “passes” functional checks.

Circuit Substrate Decisions: PET Circuits vs Flex Circuits

Circuit choices influence both electrical reliability and mechanical durability. Common options for a membrane switch include printed circuits on PET and flexible circuits (FPC). In general:

• PET printed circuits: cost-effective and widely used for many control panels; ensure trace geometry and stress relief are appropriate.

• FPC (flex circuits): often chosen for higher density routing, tighter integration, or demanding applications; can improve connector robustness when designed well.

The best choice depends on your routing density, connector requirements, and environment. For long-term reliability, prioritize stable termination and mechanical strain management over marginal cost savings.

Reliable Circuit Design Rules for a Tactile Membrane Switch

Electrical failures in a tactile membrane switch frequently come from stress points rather than “bad conductivity.” To reduce risk, incorporate circuit best practices that protect traces and contacts:

• Avoid sharp corners: use smooth routing transitions to reduce stress concentration.

• Provide keep-out zones: keep critical traces away from areas where the stack flexes repeatedly.

• Reinforce tail exits: add strain relief and avoid bending at the same point repeatedly.

• Design stable contact pads: ensure geometry supports repeatable closure and avoids partial contact.

• Control contamination: design to minimize particle entry and ensure clean assembly practices.

Connector design is equally important. ZIF tails, headers, and custom terminations must be specified with insertion cycles, cable routing, and vibration in mind. A reliable membrane switch should not rely on “perfect installation” to work consistently.

Sealing and Environmental Protection: Preventing Moisture and Dust Pathways

If your membrane switch will face water spray, dust, outdoor weather, or aggressive cleaning, sealing becomes a primary design feature. Key concepts include:

• Ingress protection goals: match IP targets to real exposure instead of choosing the highest number by default.

• Edge sealing strategy: prevent capillary pathways at layer boundaries.

• Gasket and compression planning: ensure the enclosure interface provides uniform compression without deforming the switch.

• Pressure equalization (when needed): in sealed housings, consider venting approaches to reduce pressure stress on layers.

A tactile membrane switch can feel perfect in a lab and still fail outdoors if sealing is treated as an afterthought. Seal design should be validated with the enclosure it will actually be mounted on.

Mechanical Integration: The Enclosure Can Make or Break Reliability

Even the best-designed membrane switch can suffer if it’s mounted on a warped, flexible, or contaminated surface. Integration reliability depends on:

• Mounting surface flatness: uneven surfaces create local stress and weak bonds.

• Enclosure stiffness: flexing panels can change tactile feel and accelerate delamination.

• Cutout and tolerance control: misalignment can cause poor key response or uneven tactile feedback.

• Cable routing: tail bend radius and strain relief should be planned from the start.

For long-term reliability, specify installation guidelines alongside the tactile membrane switch drawing: cleaning steps, pressure requirements, recommended bend radii, and handling precautions.

Validation Testing: Prove Reliability Before Production

Reliability is not a promise—it’s a test outcome. Build a validation plan that reflects your use case and your tolerance for field returns. Common validation categories for a membrane switch include:

Cycle-Life and Tactile Consistency Testing

• High-cycle actuation tests: verify tactile response, actuation force drift, and electrical closure behavior after extended cycling.

• Key-to-key consistency: confirm that different keys don’t diverge significantly in feel or response.

• Post-cycle inspection: check dome stability, retainer performance, overlay wear, and contact condition.

Environmental and Chemical Resistance Testing

• Temperature/humidity cycling: evaluate delamination risk and condensation effects on circuits.

• Water/dust exposure tests: verify sealing effectiveness and edge integrity.

• Chemical wipe tests: test your real cleaners/disinfectants, not generic solvents.

• UV exposure (outdoor products): verify overlay stability, legend durability, and adhesive performance.

Assembly Quality Checks That Prevent Reliability Drift

After design, manufacturing control keeps reliability consistent. Effective quality controls for tactile membrane switch builds often include:

• Incoming inspection for films, domes, adhesives, and circuits.

• Lamination process control to avoid trapped air, misalignment, and weak bonds.

• Functional testing for every unit or statistically significant sampling (continuity, actuation response).

• Visual inspection for edge seal integrity, overlay defects, and tail damage.

If your product will ship globally, include packaging and handling requirements that protect the membrane switch tail and prevent bending damage during logistics.

Common Failure Modes and How to Design Them Out

Below are frequent long-term issues and the design levers that reduce them:

Tactile vs Non-Tactile Membrane Switch: Reliability Tradeoffs

Choosing a tactile membrane switch is often driven by user confirmation needs—operators want a clear “I pressed it” signal. However, reliability tradeoffs can include dome selection complexity and the need to control tactile consistency across manufacturing lots.

Non-tactile designs can be appropriate where silent operation, smooth surfaces, or minimal mechanical elements are preferred. But if your users depend on tactile confirmation (gloved use, noisy environments, safety-critical inputs), a well-designed tactile system can improve usability while remaining highly reliable.

What Different Sources Emphasize About Tactile Membrane Switch Reliability

• TactileMembrane: highlights harsh-environment protection, sealing strategies, and dome force/travel selection for stable tactile response.

• Butler: emphasizes circuit design discipline, material compatibility, and construction best practices to avoid early failures.

• Reliatrace: stresses reliability-first design with strong attention to dome performance and robustness in demanding environments.

• FsrExpert: frames design as a structured process that aligns switch construction with modern application expectations.

• PCB Hero: focuses on circuit routing, keep-out discipline, tail design, and termination methods to prevent intermittency and trace damage.

• Epec: emphasizes practical engineering choices for circuit type, waterproofing expectations, and real-world connection reliability.

• Niceone-tech: highlights a comprehensive design approach with strong attention to testing and quality control steps.

• Tahoma: focuses on the decision logic between tactile and non-tactile options based on user needs and usage intensity.

• General Label: emphasizes tactile/non-tactile comparisons and notes how environmental factors can affect tactile structures.

• System Label: emphasizes selecting stainless steel dome options (size/shape/force) as a key tactile design lever.

• Nelson Miller: emphasizes durability expectations and long cycle-life thinking tied to material choices like polyester.

• Reddit: highlights practical durability testing methods and real-world installation factors that can drive failures.

• IQS Directory: emphasizes pairing tactile feedback with customization options to support usability across industries.

FAQ: Tactile Membrane Switch Design for Long-Term Reliability

How long can a membrane switch last?

A membrane switch can last from tens of thousands to millions of actuations depending on dome technology, materials, environmental exposure, and integration quality. The best way to confirm lifetime is to define your duty cycle and validate it through cycle testing plus environmental conditioning.

What actuation force is best for a tactile membrane switch?

The “best” force depends on your users and context. Light forces reduce fatigue for frequent operation; heavier forces reduce accidental presses and can suit gloved users. Choose based on user feedback, safety requirements, and consistency targets—then validate with real operators and cycle tests.

How do I prevent intermittent keys over time?

Intermittent response usually comes from stress on traces or weak terminations, contamination, or moisture pathways. Improve trace routing and strain relief, tighten termination design, control cleanliness during assembly, and reinforce sealing and edge integrity.

Do I need waterproofing for my membrane switch?

If the interface may see spray, wipe-down cleaning, outdoor exposure, or dust, you should design a sealing strategy (and an enclosure interface) that matches that exposure. Waterproofing is not only about the switch—it includes how the switch mounts to the enclosure.

What is the most overlooked reliability factor in tactile membrane switch design?

Integration. A tactile membrane switch that performs perfectly on a flat test plate can fail early when mounted on a flexible or textured enclosure, or when the tail is bent sharply during assembly. Document installation rules and validate on the final housing.

If you want to maximize long-term performance, treat your membrane switch as a system: specify the environment, engineer the stack-up, choose a tactile technology that fits the duty cycle, protect the circuit and termination, seal the edges, and validate with tests that match real use.
